ESKV PLUS, metrisch, EN 62444, extended clamping range


ESKV PLUS


Where space for cable installation is limited but the cable type is strictly defined, that's where our ESKV PLUS comes into action. With a wider clamping range and the same standard gland size as well as the same thread, it is the perfect solution and expands the range for the various areas of application in electrical installations.

The benefits of the ESKV PLUS at a glance

The benefits of the ESKV PLUS at a glance

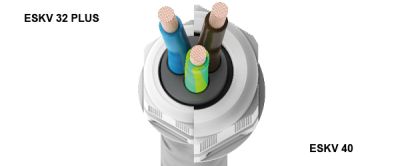

Up to a cable diameter of 25 mm, an ESKV 32 PLUS can be used as an alternative to an ESKV 40.

  • Wider clamping range with the same standard cable gland size as well as the same thread
  • High protection (IP68)
  • High quality and UV resistant material, 100 % Polyamide
  • Thanks to its unique design, our cable glands (size M20 – M32) require no threat gasket
  • Very vibration proof due to an optimal thread design

Four more sizes

Our ESKV 20 PLUS (M20) has been extended by four additional sizes M25, M32, M40 and M50.


Technical product data
