EMSKV-SET 25

Cable gland with locknut, brass nickel-plated, M25

Features

Logo Logo Logo Logo
Material cable gland Brass nickel-plated
Material clamping cage Polyamide
Material sealing gasket EPDM
Temp. range min -40 °C
Temp. range max 100 °C
Protection class IP68 (5 bar 30 min), IP69
Thread type M
Ø Connection thread D 25
Lead 1,5
Length screw-in thread L 7 mm
Ø cable diameter min 9 mm
Ø cable diameter max 17 mm
Key width SW 29 mm
Collar diameter (E) 32 mm
Total length TL 33 mm - 42 mm
Type of cable anchorage A
Install. torques fitting 10 N m
Install. torques cap nut 10 N m
Impact category 6
Equipment incl. locknut
Surface Nickel-plated
Order no. nickel-plated 10065035
Packing unit 50
Type EMSKV-SET 25
Tariff number 74198090
EAN number 4007685650359
ETIM-Classification EC000441

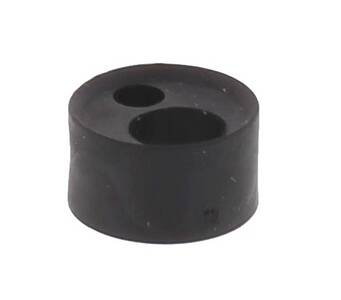

Recommended accessories
