ESKV 63 BK

Cable gland, polyamide, M63, RAL 9005 with short thread

Features

Logo Logo Logo Logo Logo
Material cable gland Polyamide
Material sealing gasket EPDM
Protection class IP69, IP68 (5 bar 30 min)
Temp. range min -40 °C
Temp. range max 100 °C
Glow wire test 750 °C
Thread type M
Ø Connection thread D 63
Lead 1,5
Length screw-in thread L 15 mm
Ø cable diameter min 34 mm
Ø cable diameter max 48 mm
Key width SW 68 mm
Collar diameter (E) 75 mm
Total length TL 64 mm - 78 mm
Type of cable anchorage A
Install. torques fitting 30 N m
Install. torques cap nut 30 N m
Impact category 5
Equipment Incl. connection thread gasket
Product Color RAL 9005
Type ESKV 63 BK
Order no. RAL 9005 10066127
Packing unit 3
EAN number 4007685661270
Tariff number 39269097
ETIM-Classification EC000441

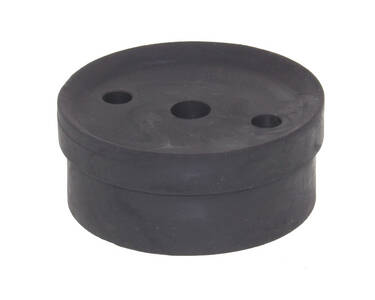

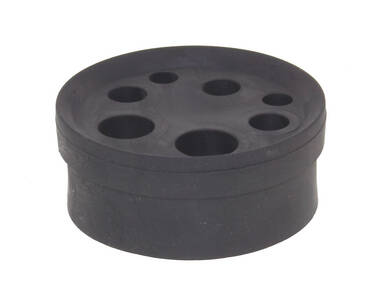

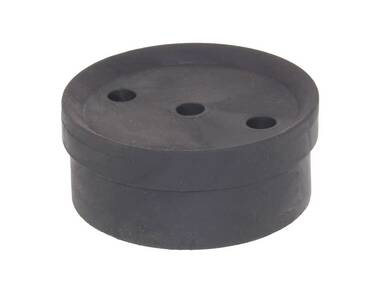

Recommended accessories
