PMSKV 11-16

Cable gland, brass nickel-plated, Pg 11

Features

Logo Logo Logo Logo
Material cable gland Brass nickel-plated
Material clamping cage Polyamide
Material sealing gasket EPDM
Temp. range min -40 °C
Temp. range max 100 °C
Protection class IP69, IP68 (5 bar 30 min)
Thread type PG
Ø Connection thread D 11
Length screw-in thread L 6 mm
Ø cable diameter min 4,5 mm
Ø cable diameter max 10 mm
Key width SW 22 mm
Collar diameter (E) 24 mm
Total length TL 27 mm - 35 mm
Type of cable anchorage A
Install. torques fitting 4 N m
Install. torques cap nut 4 N m
Impact category 6
Surface Nickel-plated
Order no. nickel-plated 10100683
Packing unit 50
Type PMSKV 11-16
Tariff number 74198090
EAN number 4007685007115
ETIM-Classification EC000441

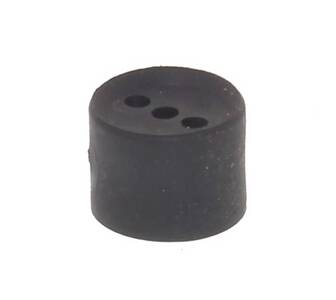

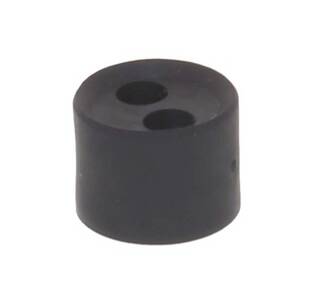

Recommended accessories
