Ex-3312/D/E27/2x20-Z10

Ex Light fitting with protection guard brass max. 200W 230V E27, IP66/67

Products may differ in size, colour and appearance to those shown. If you require further information or customisation, please contact us directly.

Features

Logo Logo
WISKA-Order no. 10104849
Type Ex-3312/D/E27/2x20-Z10
Material Brass
Globe colour Clear
Material guard Brass
Power^ max. 200 W
Voltage 230 V
Voltage max. (V) 250 V
Type of Voltage AC
Frequence 50/60 Hz
Protection class IP66 / IP67
Operational areas Explosion protection, Outdoor
Temp. range min -40 °C
Temp. range max 55 °C
Lampholder E27
Number of lampholder 1 ST
Lamp variable (E27)
Lamp not included
Type of cable gland M 20 x 1,5
Material cable gland Brass
Using for cable gland Using for cable gland
Type of cable armoured
Ø cable diameter min 8 mm
Ø cable diameter max 10,5 mm
Mounting Upside down, Surface mounting, Ceiling
Approval IECEx TUR 15.0022X, TÜV 14 ATEX 7567 X
Marking II2D Ex tbIIIC T85...T200°C Db, II 2G Ex de IIC T6...T3 Gb
Explosion Groups IIC
Temp.-class max. T6
Zone 21, 1
External dimensions LxWxH 244x255x310mm
Weight 14,27 kg
Remarks:

Light fittings with protection guard,
brass, 3312, up to T6, max. 200W, IP66/67
Ignition protection: de
Explosionsschutz:
II 2G Ex de IIC T6...T3 Gb
II 2D Ex tb IIIC T85°C...T200°C Db
Zone: 1
Bescheinigungen: TÜV 14 ATEX 7567 X
IECEx TUR 15.0022X
Lampholder: E27
Lamp: incandescent lamp up to 200W;
Fluorescent lamp up to 25W; blendend
lamp up to 160W; LED lamp up to 18W
(not included in delivery)
2 cable glands M20x1,5-Z10 -O-
for armoured cable 8-10,5mm in diameter

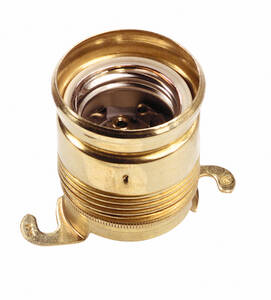

Spare parts
