EMBMFS-S-10-16

Metal Conduit fitting brass nickel-plated, NW10/M16, smooth

Products may differ in size, colour and appearance to those shown. If you require further information or customisation, please contact us directly.

Features

Logo Logo Logo
Material Conduit fitting Brass nickel-plated
Material sealing gasket PA
Protection class IP67
Temp. range min -45 °C
Temp. range max 145 °C
Operational areas Mechanical plant engineering
NW 10
Thread type M
Ø Connection thread D 16
Lead 1,5
Length screw-in thread L 9 mm
Ø closure VD 24 mm
Ø inside 10 mm
Key width SW1 20 mm
Key width SW2 22 mm
Total length TL 33,5 mm
Using for Conduit smooth
Torque nozzle 2,5 N m
Torque cap nut 2,5 N m
Type EMBMFS-S-10-16
WISKA-Order no. 10109089
Packing unit 5
EAN number 4007686080735
Tariff number 74122000
ETIM-Classification EC001180

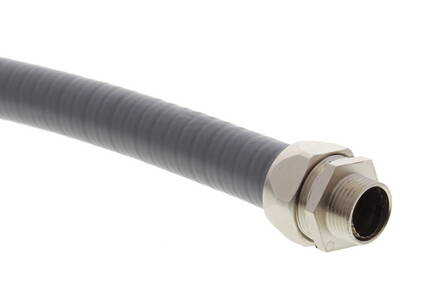

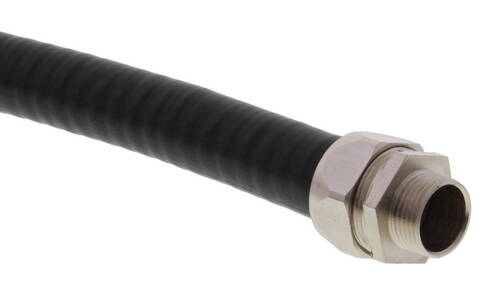

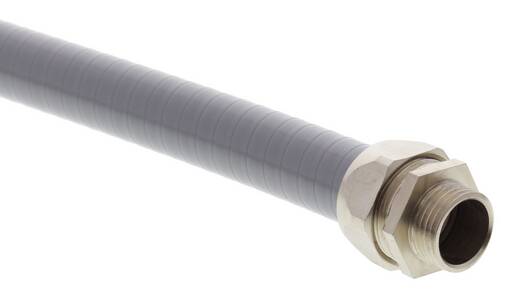

Recommended accessories
